Technologies

Unique anisotropic microtubes can be prepared by combinations of MgTube™ and fine particles

Unique anisotropic microtubes can be prepared by combinations of MgTube™ and fine particles.

Double-surface microtube having plural properties on its inner/outer surfaces can be synthesized by selective combination of other particles on its inner/outer surface.

TEM image of TiO2-combined (inner surface) MgTube™

Outline of technique

A particle having several parts with different properties is called as an anisotropic particle.

MgTube™ combined with fine particles act as an anisotropic particle, which has different properties on its inner/outer surface. For examples, combination of lipophilic particles onto inner surface makes it possible to synthesis of amphiphilic microtube with hydrophobic inner surface and hydrophilic outer surface.

The amphiphilic microtube is considered to be applied as powder emulsifying agents, solubulization agent, encapsulation agents and so far. Various functional microtubes can be considered being obtained in respond to kinds of combined particles and site (inner/outer surface) to be combined with the particle.

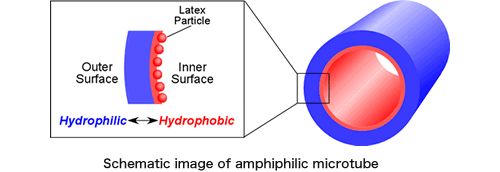

Figure:Schematic image of amphiphilic microtube

Features

A unique double-surface morphology with different properties on its inner/outer surface.

Principles

In the process of synthesizing MgTube™ by sacrificial template method, the particle to be combined is added to obtain double-surface microtubes. Combined site (inner/outer surface) can be controlled by selection of the adding period.

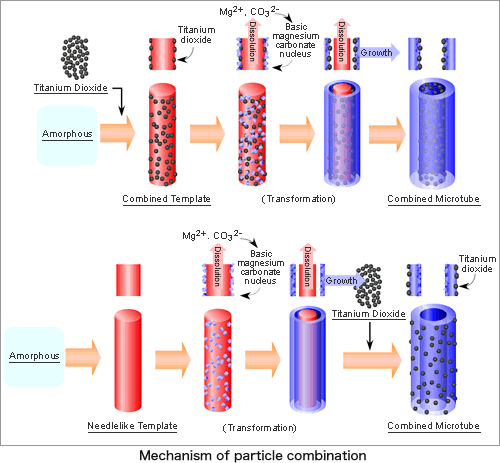

Figure:Mechanism of particle combination

Applications
cosmetics, medicines, health ingredients, specialty pigments, additive for industrial materials.
